How to Use

No Special Courses or Sophisticated Training is Necessary

No special courses or sophisticated training is necessary to learn how to insert the AGobiTM All-In-One Airway Stabilizing device and it easily connects to ambubags or noninvasive mechanical ventilator devices, making it an easy-to-use alternative in almost any medical situation.**

Just follow the steps below to insert the AGobiTM All-In-One Airway Stabilization device

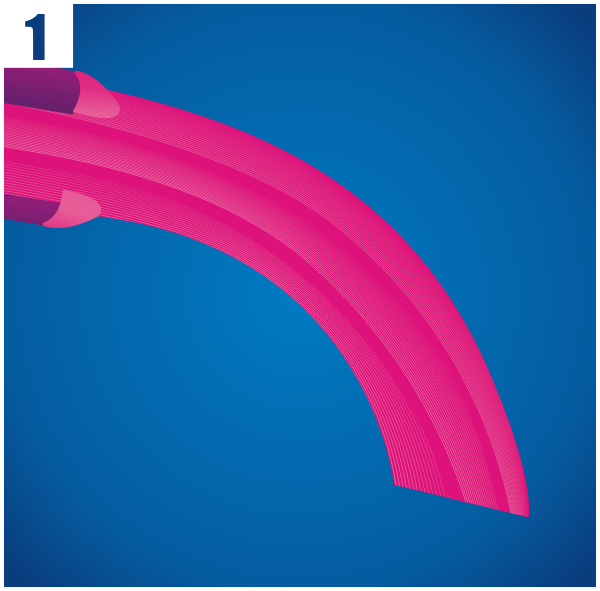

Step 1

Lubricate the oral piece with lubricating gel or a topical anesthetic.
Click to Zoom

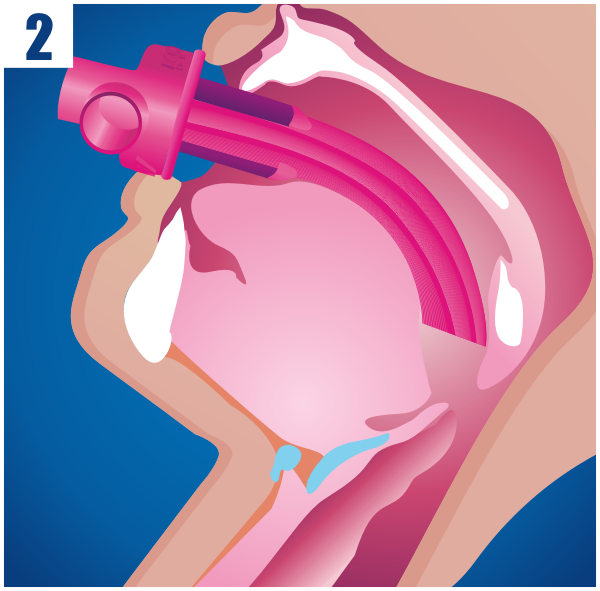

Step 2

Slowly insert oral piece while keeping tongue depressed at all times.
Click to Zoom

Step 3

Use rubber strap to keep oral piece in place by wrapping it around back of head.
Click to Zoom

Step 4

Connect oxygen source to the large side port for oxygen supplementation.
Click to Zoom

Step 5

Connect the carbon dioxide monitor (if applicable) to the smaller port on the opposite side.
Click to Zoom

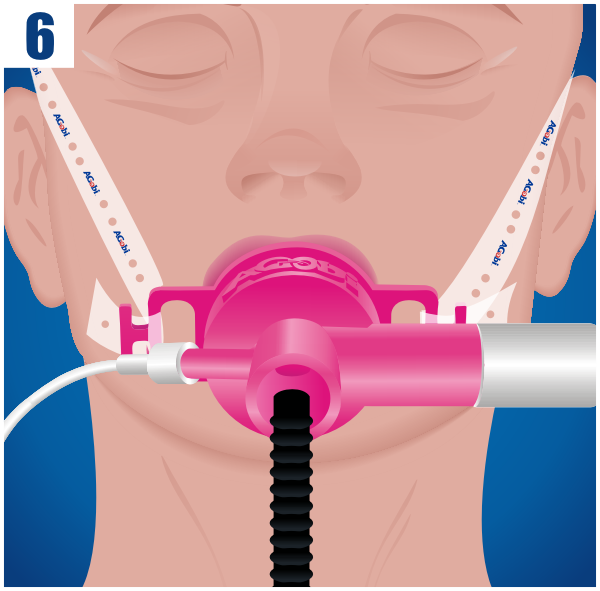

Step 6

By opening lid of the multiport adaptor, insert the endoscope through the tubular mouth piece.
Click to Zoom

6b

For other indications to support airway patency, insert suction catheter through the tubular mouth depressor piece.
Click to Zoom

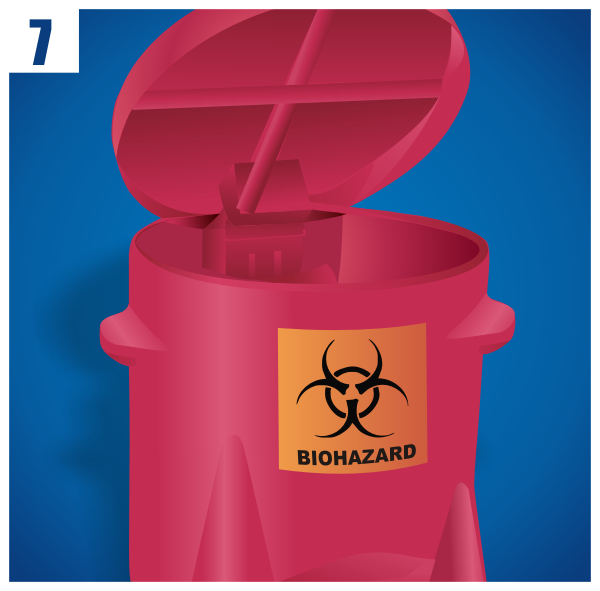

Step 7

Dispose of the AGobiTM device properly.

**DO NOT USE DEVICE IF ANY OF THE FOLLOWING ARE PRESENT:

  • Deformity of Oral Cavity or Upper Airway
  • Hypoxemic Respiratory Failure Requiring Orotracheal Intubation
  • Hypercarbic Respiratory Failure Requiring Orotracheal Intubation
  • Decreased Responsiveness
  • Nausea or Vomiting
  • Choking or Blockage due to Foreign Object
